In the world of high-performance airsoft AEGs (Automatic Electric Guns), achieving flawless and consistent feeding is paramount. If you're experiencing intermittent misfeeds, especially in high-speed or high-stress setups, the issue might not be your magazine or hop-up, but rather the timing of your gearbox cycle. This is where a small, often-overlooked component becomes critical: the delayer chip, also known as a sector gear chip or delayer.

At JVAN Airsoft, we're dedicated to providing you with the technical knowledge to optimize your gear. This guide will explain what a delayer chip is, how it works, and what to consider when choosing one.

Understanding the Problem: The Tappet Plate and Sector Gear Interaction

To understand the delayer chip's role, we must first look at two key components inside your gearbox:

1. Sector Gear: This gear has a specific profile that includes a small nub or lobe.

2. Tappet Plate: This is a lever-like component that moves back and forth. Its primary job is to pull the air nozzle back against the spring tension, which allows a BB from the magazine to roll into the hop-up chamber.

The cycle works like this: As the sector gear rotates, its small nub catches on the tappet plate, pulling it (and the attached air nozzle) backward. After the nub passes the point of contact, the tappet plate's spring snaps it forward, chambering the BB and sealing the nozzle against the hop-up bucking.

The problem arises in high-rate-of-fire builds. The sector gear spins so quickly that its nub only engages the tappet plate for a fraction of a second. This may not pull the air nozzle back far enough, or—more critically—it may not hold it back for long enough to allow a BB to fully and reliably seat in the hop-up unit. The result is a misfeed, often perceived as a "click" without a shot being fired.

The Solution: What is a Delayer Chip?

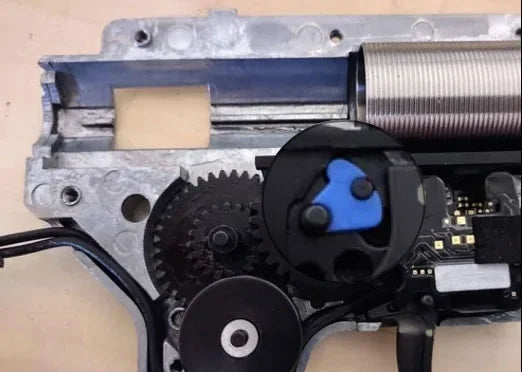

A delayer chip is a small aftermarket component, typically made of nylon, polymer, or metal, that is installed directly onto the sector gear. Its purpose is to modify and optimize the engagement between the sector gear and the tappet plate.

Think of it as an "extension" to the sector gear's original nub. By increasing the contact surface and altering the engagement profile, the delayer chip effectively prolongs the time the tappet plate is held in the rearward (open) position.

How does it work?

• When installed, the delayer chip's pronounced "hump" or lobe makes contact with the tappet plate earlier in the gear's rotation cycle.

• It holds the tappet plate and air nozzle retracted for a longer duration.

• This extended "dwell time" provides a larger, more consistent window for the BB to feed from the magazine into the hop-up chamber, drastically improving feeding reliability in high-cycle setups.

Key Considerations When Choosing a Delayer Chip

Not all delayer chips are created equal. Based on extensive industry experience, here are some critical factors to consider:

1. Material Matters

• Recommended: Nylon-Fiber Reinforced Polymers are highly recommended. They offer an excellent balance of strength, durability, and slight flexibility, which helps absorb impact without transferring excessive force to other components.

• Use with Caution: We advise against using chips made from clear or translucent polycarbonate. While strong, this material is more brittle and has been known to crack, shatter, or even crush under the repeated stress against the tappet plate, potentially sending plastic debris into your gearbox.

2. Shape and Profile
Delayer chips come in various asymmetric shapes. The most common and versatile type features a single, pronounced hump on one side.

• Standard Installation: With the hump facing the direction of gear rotation, it provides the extended delay for better feeding.

• Advanced Tuning (Flipping the Chip): An expert trick for resolving issues where the air nozzle isn't being pulled back far enough is to install the chip backwards (hump facing away from the direction of rotation). This can cause the tappet plate to be "yanked" back slightly sooner and sometimes farther, ensuring the nozzle retracts fully. This is a fine-tuning step for specific feeding issues.

3. Fitment
Aftermarket parts often require minor fitting. The gap between your sector gear's posts may not perfectly match the chip's mounting points. Be prepared to gently file the chip for a secure, snap-on fit without any wobble. Some high-end sector gears come with a delayer lobe integrated directly into their design, eliminating the need for a separate part.

Conclusion

The delayer chip is a simple, inexpensive, yet incredibly effective upgrade for any AEG build where feeding consistency is a concern. By ensuring the tappet plate is held open long enough for a BB to chamber correctly, it solves a common problem in high-performance airsoft.

Understanding the function of components like the delayer chip is key to building a reliable and high-performing AEG. At JVAN Airsoft, we are passionate about providing you with the expertise and high-quality products you need to get the most out of your airsoft equipment.

For more technical guides, tuning tips, and expert insights, stay tuned to our blog and knowledge base. Have questions? Feel free to reach out to the JVAN Airsoft  support team
