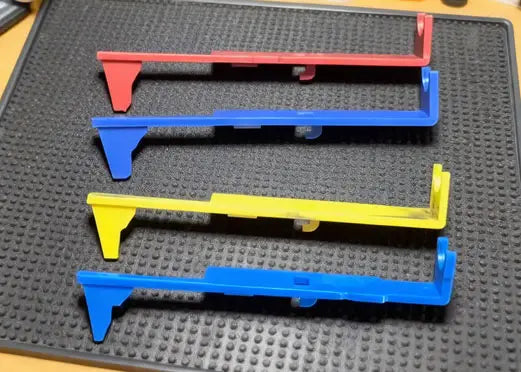

In the intricate ecosystem of an Airsoft Electric Gun (AEG), the harmony between components dictates overall performance. One of the most critical, yet frequently underestimated, elements is the tappet plate. This small, plastic component is the conductor of your AEG's firing sequence, and its precise timing is paramount for achieving consistent FPS and flawless feeding. Mastering tappet plate timing can resolve a host of performance issues, transforming your AEG into a model of reliability and consistency.

Why Tappet Plate Timing is Crucial

The tappet plate serves two essential functions in the firing cycle:

1. It retracts the air nozzle, creating a window for a BB to feed from the magazine into the hop-up chamber.

2. It must return forward, sealing the air nozzle against the hop-up bucking before the piston is released and compresses air.

When this sequence is perfectly synchronized, your AEG will feed without a hitch and achieve a perfect air seal, resulting in consistent, high FPS. Incorrect timing leads to a cascade of problems, including double-feeds, low velocity, erratic FPS, and significant air loss.

How to Diagnose and Adjust Tappet Plate Timing

You can diagnose timing without a fully assembled gearbox. Create a simple test apparatus with the air nozzle, tappet plate, sector gear, piston, cylinder, and cylinder head.

1. Simulate Spring Pressure: Rotate the sector gear while gently applying pressure to the tappet plate with your thumb. This mimics the resistance of the tappet plate spring.

2. Observe the Pull-Back: As you rotate, the sector gear's cam should pull the tappet plate all the way back relatively early in its rotation.

3. Monitor the Return: This is the most critical observation. Note the point where the tappet plate is released and begins its forward journey. For optimal timing, it must reach its full forward position before the sector gear's final tooth releases the piston.

Timing Across Different Gear Setups

• SSG (Single Sector Gear): These setups are generally very forgiving. The tappet plate often returns with ample time to spare before the piston is released. While timing should always be checked, significant issues are less common in well-built SSG systems.

• DSG/TSG (Dual/Triple Sector Gear): In high-speed setups, precise timing is non-negotiable. The incredibly fast cycle rate leaves almost zero room for error. The objective is to have the tappet plate pulled back just long enough for a BB to feed, then released to snap forward as rapidly as possible, ideally moments before the piston is released.

The Art of Modifying the Tappet Plate

If testing reveals a late return, you will need to modify the tappet plate to allow it to return faster. This is done by carefully shortening the fin that the sector gear's cam interacts with.

• Methodical Adjustment: Use a fine file or sandpaper to remove small amounts of material from the fin. After each adjustment, reassemble and test the timing. Proceed incrementally; it is easy to remove more material, but impossible to add it back. The goal is to achieve the fastest return possible without compromising the BB feeding window.

Identifying Symptoms of Poor Timing

Your AEG's FPS consistency is the most reliable indicator of tappet plate timing:

• Poor Timing Symptoms:

  • Semi-Auto: Large, unpredictable FPS swings (e.g., 320 FPS followed by 355 FPS).

  • Full-Auto: A noticeable drop in average FPS compared to semi-auto, accompanied by inconsistent shot-to-shot velocity.

• Excellent Timing Symptoms:

  • Semi & Full-Auto: Tight FPS deviation (2-3 FPS) and minimal to no difference between semi and full-auto average FPS.

Expert Techniques for Reliable Tappet Plate Function

1. Upgrade to a Stiffer Spring: One of the most effective upgrades is installing a more robust tappet plate spring. A stiffer spring ensures a faster, more positive return of the plate and air nozzle. This is especially critical in high-rate-of-fire builds where every millisecond counts, greatly enhancing feeding reliability and FPS consistency.

2. Inspect for Wear and Tear: A worn-out tappet plate is a primary cause of sudden feeding failures. Compare your plate to a new one; if the engagement fin is rounded, gouged, or shows significant wear, replace it immediately. A fresh tappet plate is often the simplest solution to persistent issues.

3. Verify Gearbox Shell Compatibility: Not all tappet plates travel freely in all gearbox shells. Internal reinforcement ribs on some shells can obstruct the plate's full range of motion. Always perform a function test by rotating the sector gear in a closed gearbox to ensure the plate moves back and forth without binding or catching.

4. Ensure Smooth Travel: The tappet plate itself may require minor fitting. File down any unnecessary fins or protrusions on the plate that rub against the gearbox shell or trigger assembly. A smooth, unobstructed path is essential for consistent timing.

5. Use Sector Delayer Chips Judiciously: These chips delay the tappet plate's return to aid feeding. However, they can often introduce FPS inconsistencies by preventing the nozzle from resealing in time. They should be considered a temporary fix for specific feeding issues, not a substitute for correct fundamental timing achieved through proper parts selection and modification.

Conclusion

Achieving perfect tappet plate timing is a hallmark of expert airsoft tech work. It is a foundational skill that directly translates to superior AEG performance, characterized by flawless feeding and rock-solid FPS consistency. By applying the methods outlined in this guide—meticulous testing, incremental adjustment, and strategic component upgrades—you can eliminate one of the most common sources of AEG performance problems.
