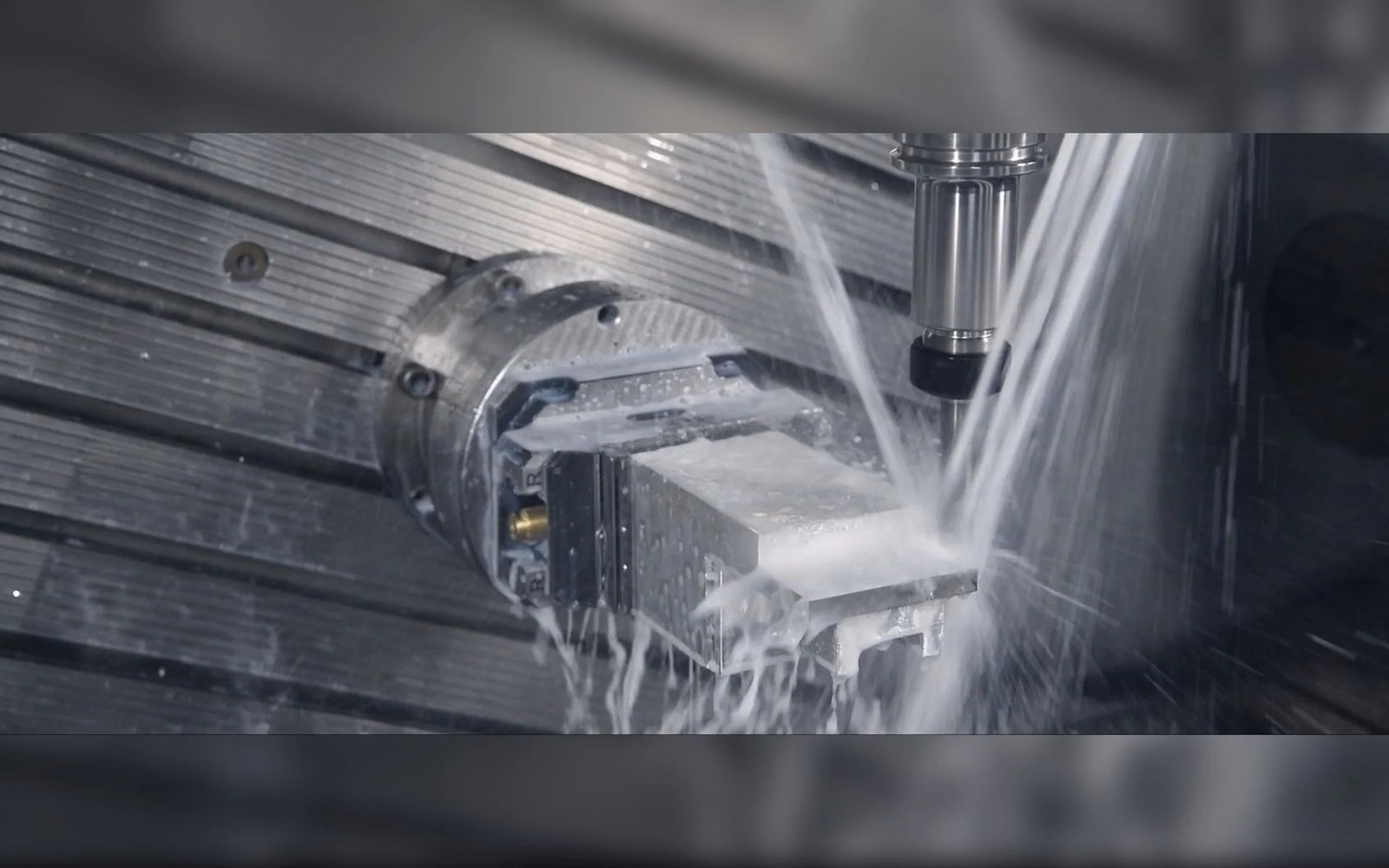

Located in Dongguan, China, Jinwang is a professional parts manufacturer engaged in rapid prototyping and metal parts manufacturing, providing one-stop service from prototype to production. Since 2000, Jinwang has been providing precision CNC milling and turning services to customers around the world. With advanced manufacturing technology and high-quality team, Jinwang has always maintained an excellent competitive advantage.

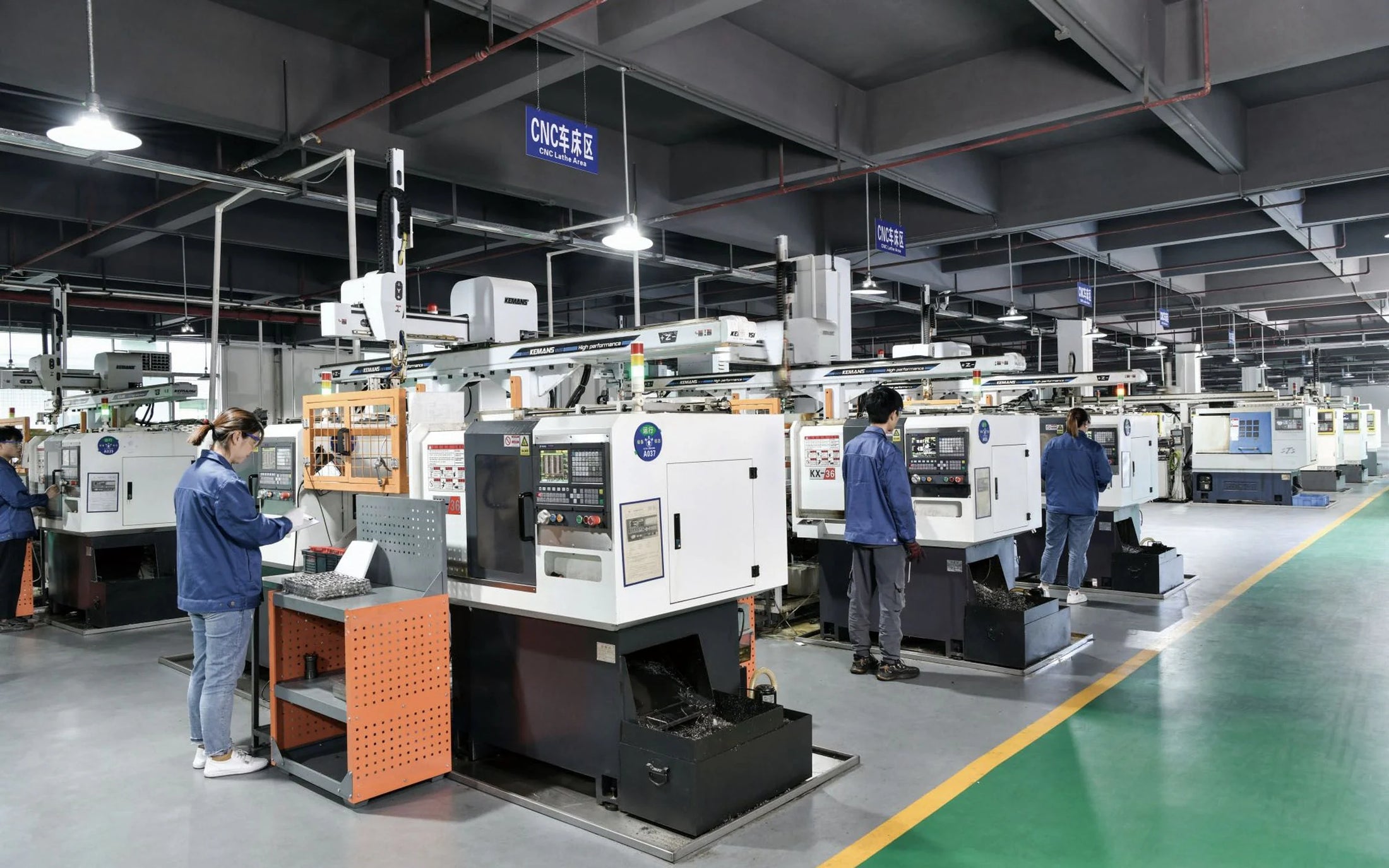

For more than 20 years, Jinwang has continuously introduced advanced production equipment. At present, Jinwang has CNC turning centers, milling centers, three-axis/four-axis/five-axis machining, cylindrical grinders, centerless grinders, gear hobbing machines and other production equipment and testing equipment over 300 pieces , whether you need prototype customization or high-volume production, we are fully equipped and ready to deliver what you need quickly, our business model is based on providing cost-effective solutions that engage customers at all stages of product development all benefit.
Our products are used in various fields such as automotive, medical, large-scale industry, and even aerospace.
The Gear Measuring Instruments mainly detects: gear transmission accuracy; Introduction to Gear Inspection; Single measurement and comprehensive measurement of cylindrical gears; Gear overall error measurement; Gear pair measurement; Bevel gear, worm gear and worm measurement; gear, worm gear and worm mapping; Gear hob, worm gear hob, shaper cutter measurement.
Analytical testing, generally including tooth shape, tooth direction, common normal and variation, radial runout, base section deviation, circumferential cumulative error, etc. This detection method requires special measuring tools and testing instruments, so some small processing enterprises can not detect (mainly tooth shape and tooth direction detection gear detector)
The flank composite measuring machine is a special equipment commonly used for precision testing of meshing parts. It can comprehensively measure the gear meshing accuracy, axial clearance, various meshing errors and gear parameters and other important indicators, and is an important tool for gear accuracy detection and quality assurance.
When measuring the gear, the gear to be measured is first meshed with the standard gear, and then the sensor is used to detect the gear tooth shape, meshing wave grind and other parameters, and the results are sent to the computer for processing, and the obtained data is analyzed and processed through the computer software, and finally the accuracy parameters of the gear are presented in the form of a report.
The application of the flank composite measuring machine greatly improves the accuracy and quality of the meshing parts

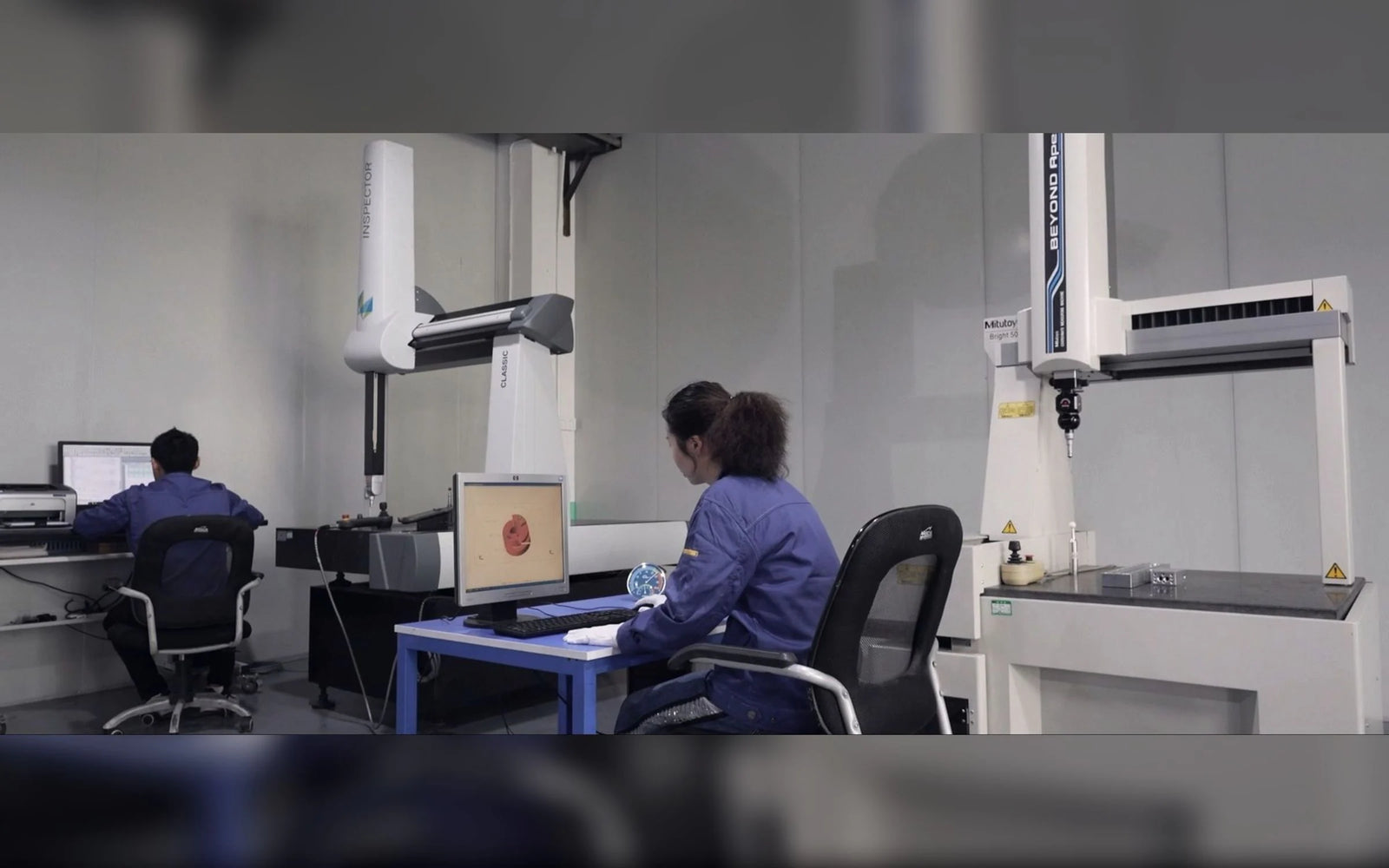

The coordinate measuring machine is an efficient and high-precision contact precision measuring instrument that emerged with the development of the computer and machinery industries.
It combines digital control technology, computer software technology, advanced position sensing technology and precision machinery technology to enable data collection of workpieces such as gears, cams, turbines and worms on a three-dimensional coordinate measuring instrument, and combines it with corresponding measurement and evaluation software, achieve professional testing and evaluation
