Dual Sector Gear Set (DSG) 9:1 For V2 V3 Standard Gearbox AEG CNC Airsoft Steel Gears

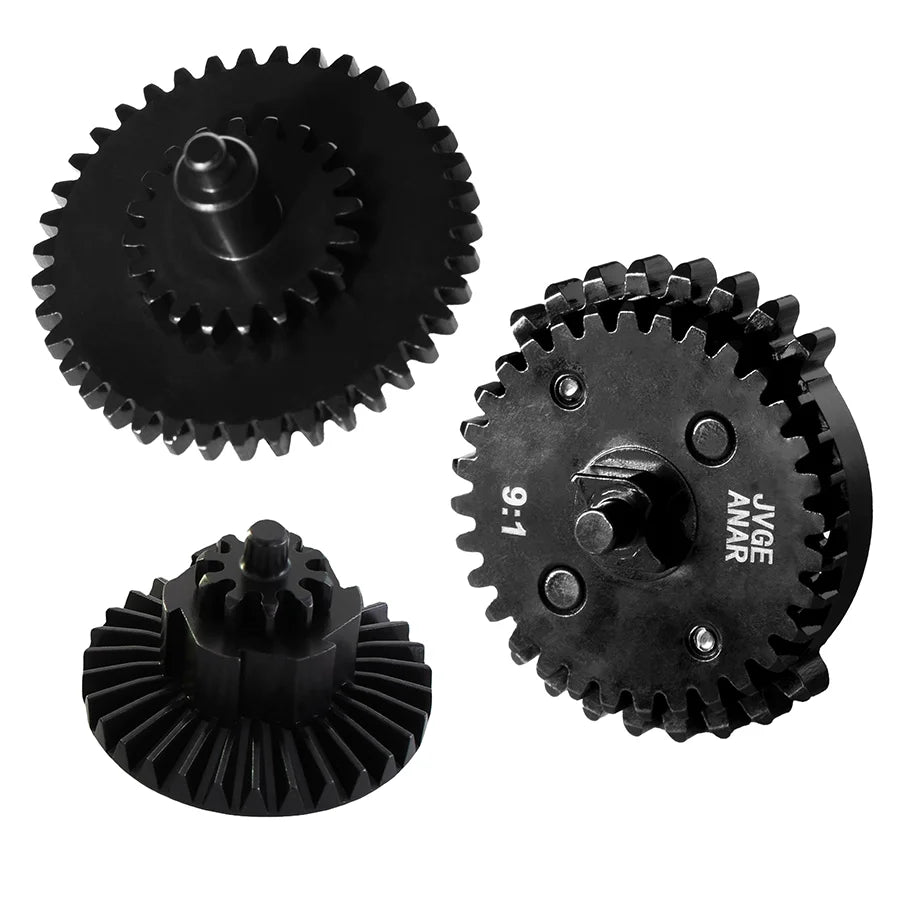

This 9:1 dual sector gear set is designed for specialist V2 and V3 AEG gearbox builds. It combines an updated dual sector gear with a spur gear and bevel gear, giving experienced builders a clearly specified foundation for a tuned DSG drivetrain.

A DSG setup depends on the complete system. Before ordering, confirm gearbox-shell clearance, piston-rack engagement, tappet timing, motor, spring, battery, bushings or bearings, and shimming requirements.

9:1 DSG Gear Set Specifications

• Gear configuration: 9:1 dual sector gear set (DSG)
• Gearbox application: Standard V2 and V3 AEG gearboxes
• Sector and spur gear material: 42CrMo/SCM440 steel
• Bevel gear: MIM construction with precision-machined contact surfaces and bore
• Published hardness: HRC42–50; pin HRC55–60; bevel gear HRC42–47
• Published battery recommendation: 11.1V
• Pack options: 1, 4, 8, or 12 complete gear sets

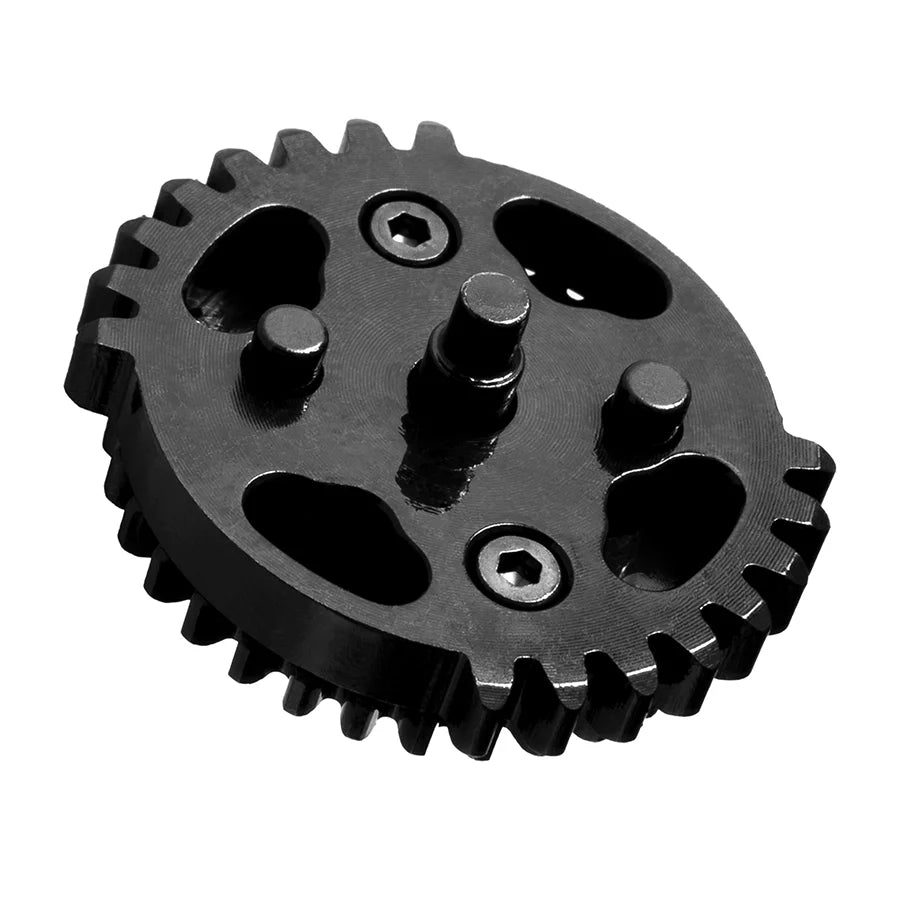

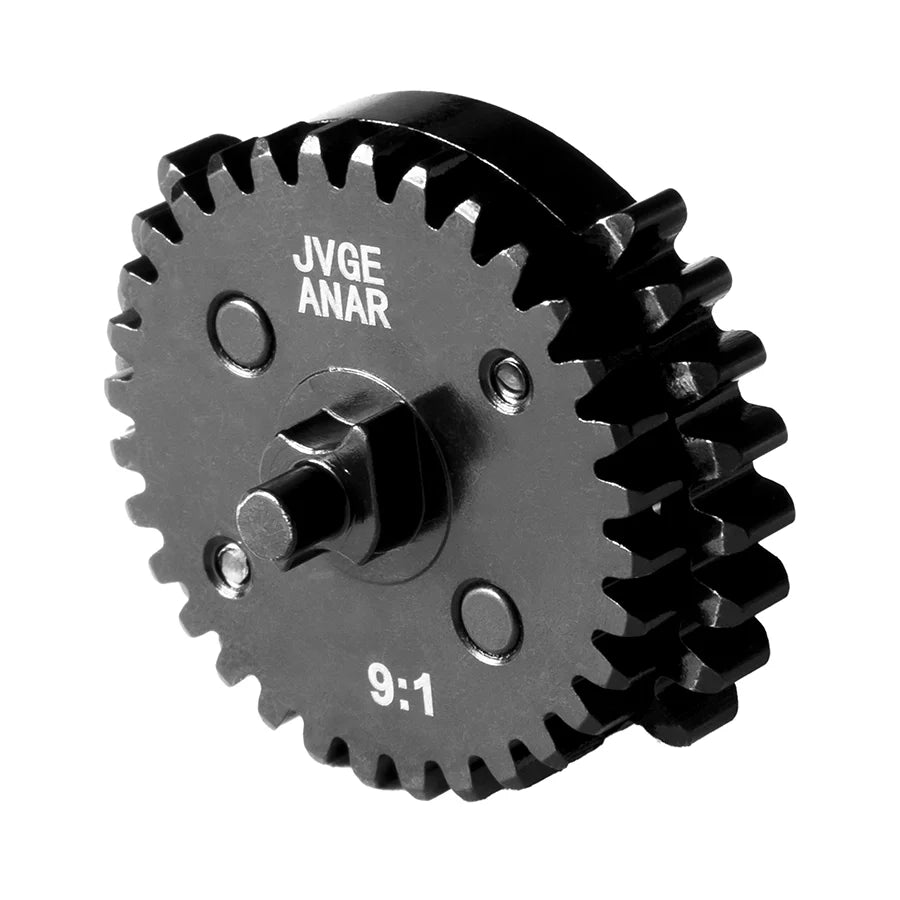

Updated Dual Sector Gear Design

The updated dual sector gear uses through-holes in place of the previous 5 mm holes, a 15-degree sector-gear chamfer, and a revised tappet-plate pin position. Customized hobbing tools are used to refine the tooth shape and piston-rack engagement.

The sector gear is produced through CNC turning, CNC hobbing, CNC milling, heat treatment, polishing, and blackening. The revised design is intended to support more consistent timing and engagement in a correctly matched DSG build.

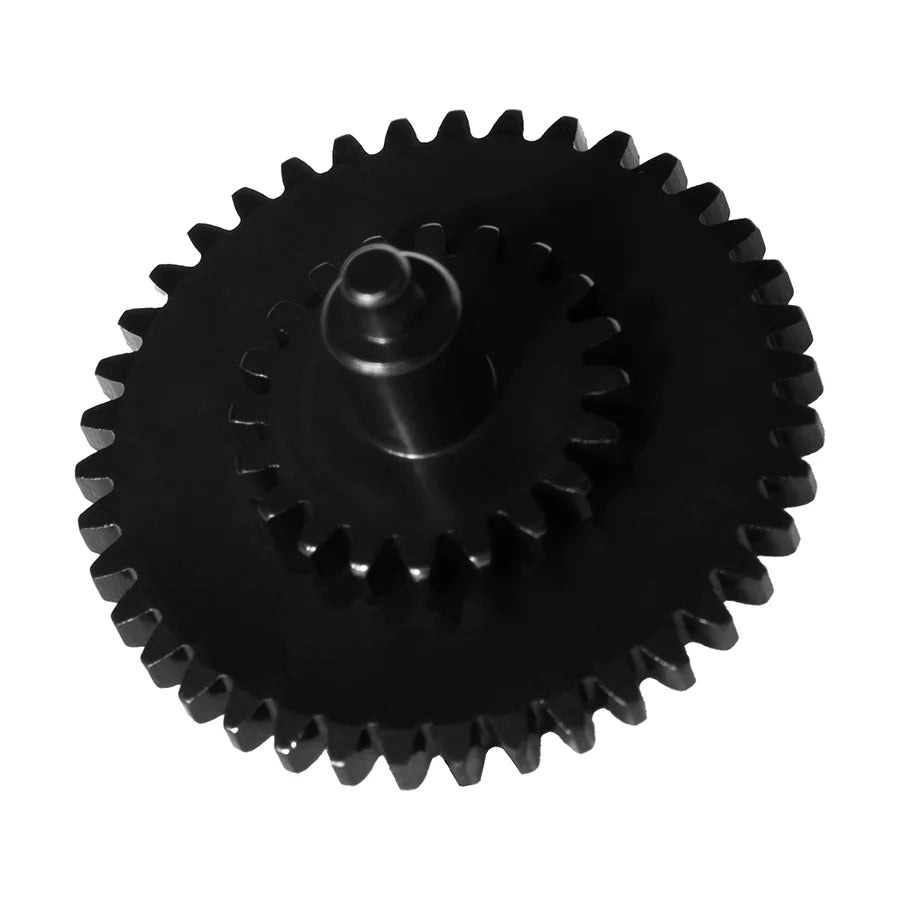

Spur Gear Construction

The spur gear is made from 42CrMo/SCM440 steel and finished through CNC turning, CNC hobbing, heat treatment, polishing, and blackening. Published spur-gear hardness is HRC42–47. The blackened surface treatment adds minimal coating thickness so the tooth geometry remains closely controlled.

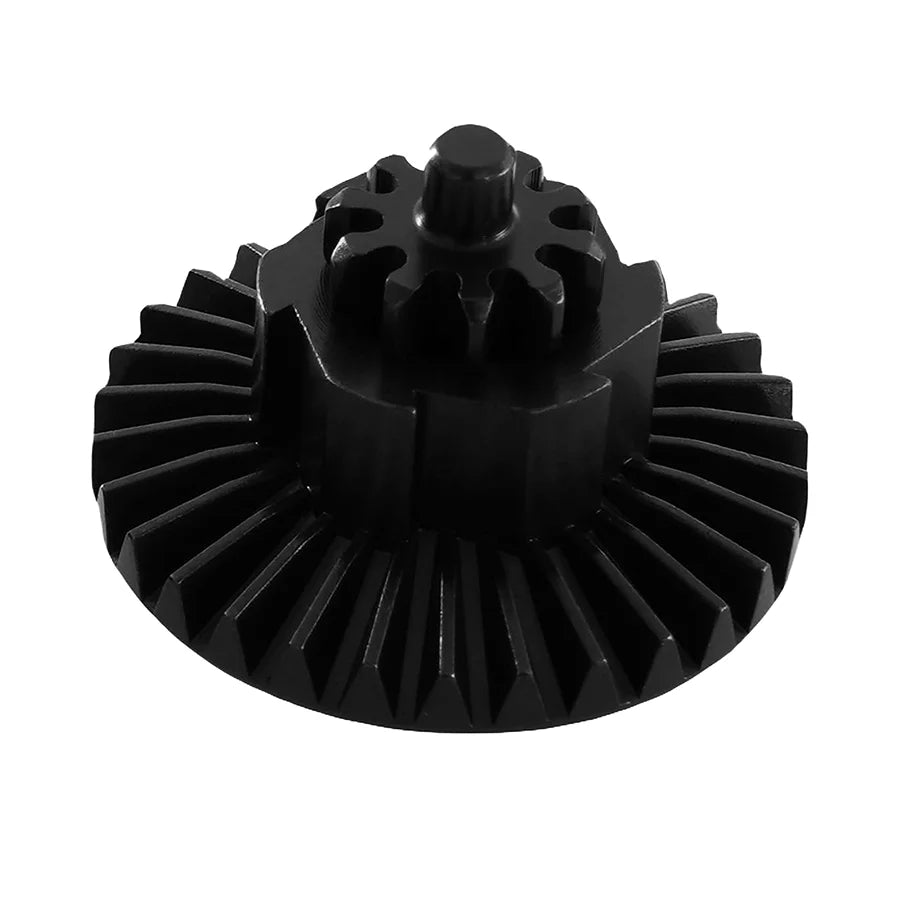

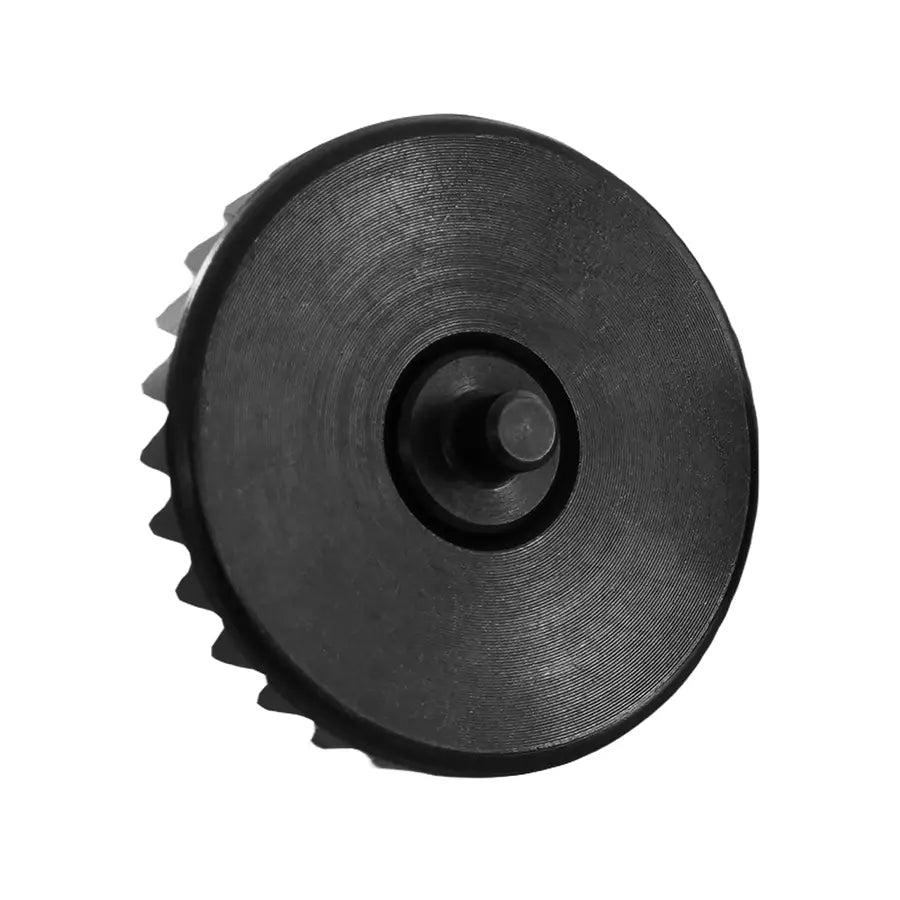

Bevel Gear Construction

The bevel gear consists of a bevel gear plate and gear shaft produced with MIM and precision-machining processes. Both sides of the bevel gear and the inner bore are machined to improve concentricity. The shaft is produced using CNC turning, gear hobbing, and straight-grain rolling.

Published hardness is HRC42–47 for the bevel gear and HRC48–52 for the shaft. The shaft tooth geometry is designed to balance toughness, engagement, and noise in a properly assembled drivetrain.

Compatibility and Installation

This gear set is intended for experienced technicians and is not a universal drop-in upgrade. Correct results depend on the full gearbox build and installation quality.

• Verify the V2 or V3 gearbox shell and available clearance.
• Confirm piston pickup, tappet-plate timing, and sector-gear engagement.
• Match the motor, spring, battery, bushings or bearings, and other drivetrain parts.
• Shim and lubricate the gears correctly before testing.

Use the Airsoft Gear Ratio Guide to compare 9:1 DSG with other ratios, and review the Airsoft Gearbox Compatibility Guide before ordering.

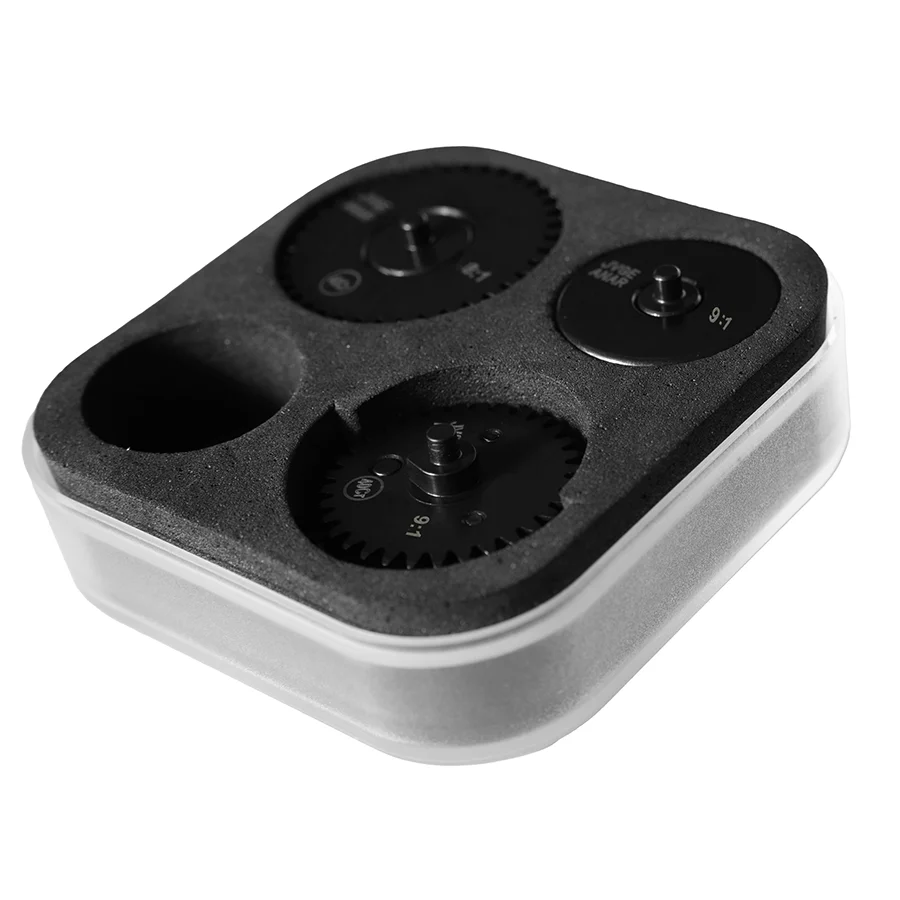

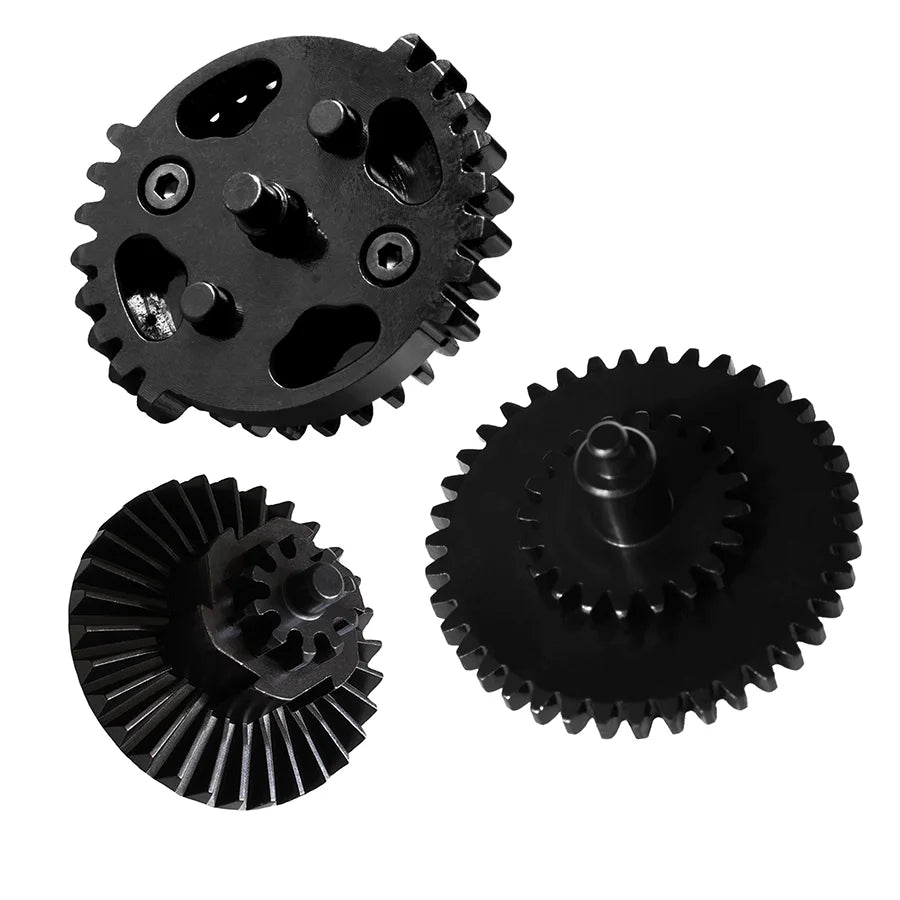

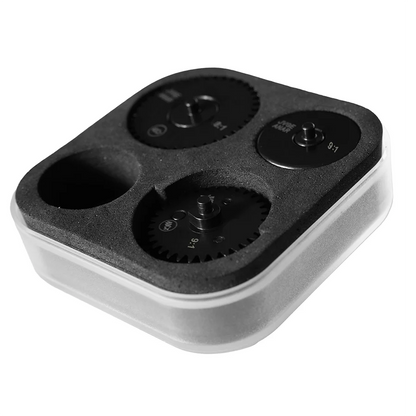

Package Contents

• 1 dual sector gear
• 1 spur gear
• 1 bevel gear

The selected 1x, 4x, 8x, or 12x option determines the number of complete gear sets supplied.

9:1 DSG Gear Set FAQ

What does 9:1 DSG mean?

This product uses a 9:1 DSG configuration. A dual sector gear has two pickup sections and engages the piston twice during one sector-gear rotation. Final cycle speed and reliability depend on the complete build, not the gear ratio alone.

Will this gear set fit every V2 or V3 gearbox?

It is designed for standard V2 and V3 AEG gearbox applications, but gearbox shells and supporting parts vary. Check shell clearance, piston engagement, tappet timing, and the complete drivetrain before installation.

Is this a drop-in DSG upgrade?

No universal DSG gear set should be treated as a guaranteed drop-in upgrade. Professional installation, component matching, shimming, and testing are strongly recommended.

What is included in one set?

One complete set includes one dual sector gear, one spur gear, and one bevel gear.
