How to Choose a POM Air Nozzle for an AEG
Choose an AEG air nozzle by matching the original part, not by relying on an M4 or AK label alone. Check the listed length and nozzle profile first, then verify how the replacement fits the cylinder-head tube, tappet plate and hop-up assembly. POM and a dual O-ring design describe the part’s construction; neither detail by itself confirms fit or a performance result.

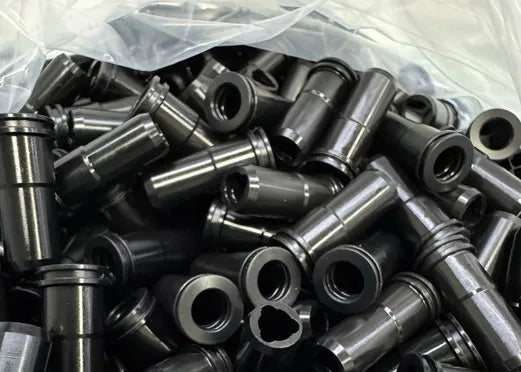

JVAN 19.6mm POM air nozzles. The listed length is only one part of the fit check.
Start with the original nozzle
Keep the original nozzle available while choosing a replacement. Compare both parts with the same documented measurement method. A listed value from one page should not be treated as an overall-length measurement unless the measurement endpoints are defined the same way.
Check these five fit points
- Listed length: confirm the required value using the same measurement method for both parts.
- Front and rear profile: compare the shape that meets the hop-up assembly and the interface that engages the tappet plate.
- Bore and cylinder-head tube fit: verify that the nozzle matches the tube and can move without binding.
- Tappet movement: check the nozzle through the available travel and return of the tappet plate.
- Hop-up alignment: confirm that the assembled nozzle aligns with the hop-up unit and the surrounding parts.
Rear-interface detail on the JVAN 21.1mm POM nozzle.
What POM and dual O-rings tell you
POM identifies the nozzle material. A dual O-ring design identifies the rear sealing configuration. These details help you compare construction, but they do not replace the fit checks above. O-ring material, hardness, groove dimensions and the final assembled result should not be assumed when they are not documented.
Front and rear profiles are part of the selection check, not just the listed length.
JVAN POM nozzle options
| Listed value | Application direction | Before ordering |
|---|---|---|
| 19.6mm POM air nozzle | AK AEG applications that require this listed value | Verify the same measurement method, matching nozzle profile and surrounding assembly. |
| 21.1mm POM air nozzle | M4 AEG applications that require this listed value | Verify the same measurement method, matching nozzle profile and surrounding assembly. |
| 21.3mm POM air nozzle | M4 AEG applications that require this listed value | Do not assume it is interchangeable with 21.1mm from the M4 label or the 0.2mm listed-value difference alone. |
Check the assembly before powered testing
After installation, inspect the nozzle’s movement and return through the tappet cycle, along with its position at the hop-up assembly. Stop if the part binds or the alignment is not correct. This mechanical check can identify an assembly problem, but it is not a guarantee of FPS, feeding or air-seal performance.
When the required dimensions are confirmed, browse JVAN airsoft nozzles and choose the exact listed value and profile for your build.
