As airsoft enthusiasts, we understand the importance of maintaining our equipment for peak performance and longevity. With the Valken V12 engine now discontinued, ensuring its reliable operation for years to come is a priority for many owners. A critical aspect of this is maintaining a leak-free air system. Even a minor leak can lead to inconsistent performance and wasted air while on the field.

At JVAN Airsoft, we are committed to providing valuable technical knowledge to the community. While we do not manufacture macro lines or air hose fittings ourselves, our expertise lies in understanding the inner workings of airsoft systems. This guide will walk you through the process of replacing the macro airline in your Valken V12 engine—a key maintenance task that can significantly enhance its airtight seal and overall lifespan.

Why Replace Your Macro Line?

The macro line is the vital artery that delivers high-pressure air from your remote line or stock tank to the engine's solenoid. Over time, this line can degrade. Common reasons for replacement include:

• Wear and Tear from Fittings: The internal fitting within the In-Grip Line (IGL) can sometimes cause abrasion or wear on the macro line, compromising its integrity and leading to potential leaks.

• Aging Material: Macro line can become brittle or develop micro-fractures with age and exposure to the elements.

• Desire for an Upgrade: Some players choose to replace their stock IGL with aftermarket options, such as those from Amped Airsoft, which may require a fresh, perfectly cut macro line for an optimal seal.

A new macro line ensures a tight, secure connection, preventing air loss and ensuring every shot is powered consistently.

Step-by-Step Guide to Replacing the Valken V12 Macro Line

Disclaimer: Always ensure your HPA tank is disconnected and the system is fully degassed before performing any maintenance.

Tools You Will Need:

• Hex key set (various sizes)

• Paper towels

• Isopropyl alcohol

• New macro line (readily available from various airsoft retailers)

• A sharp cutter or scissors for a clean, straight cut

Procedure:

1. Disassemble the Engine Shell:

   • Begin by carefully removing the plastic tip covering the nozzle.

   • Locate and remove all six hex screws securing the two halves of the engine shell. Crucial Note: These screws are often of different lengths. To ensure easy reassembly, keep them organized. A magnetic mat or small containers can be very helpful.

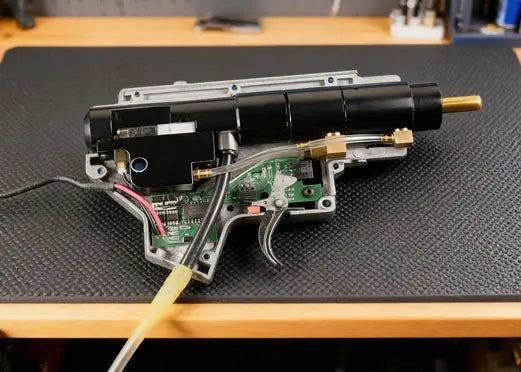

   • Once all screws are removed, gently lift the top half of the shell away from the bottom half.

2. Clean the Internal Components (Recommended):

   • With the engine open, take a moment to inspect the internal components. Using a paper towel lightly dampened with isopropyl alcohol, gently clean any areas where you notice dirt, grease, or old lubricant buildup. This helps maintain the engine's efficiency and prevents debris from interfering with moving parts.

3. Locate and Release the Old Macro Line:

   • Identify the quick-disconnect connector where the macro line enters the engine. This is typically located near the solenoid area.

   • This connector features a release ring. To detach the macro line, you need to apply even, downward pressure on this ring from all sides.

   • For better access, gently pull the engine cylinder slightly out of its casing so you can rotate it, pointing the macro line connector straight upwards.

   • Using both hands, press down evenly on the release ring. While maintaining pressure, you can gently grip the macro line with your teeth or a soft-jawed plier and pull it straight out. It should release with slight resistance.

4. Prepare and Install the New Macro Line:

   • Take your new macro line. The most critical step here is ensuring a perfectly straight cut on the end that will be inserted. An angled or jagged cut will not seal properly and will almost certainly lead to leaks. Use a sharp blade or dedicated tubing cutter for a clean, 90-degree cut.

   • Insert the freshly cut end straight into the quick-disconnect connector. Push firmly until you feel and hear a distinct "click" as the line locks securely into place.

   • Gently guide the hose back into its designated channel or slot within the motor grip area of the shell.

5. Reassemble the Engine:

   • Carefully place the top shell back onto the bottom half, ensuring the macro line is properly routed and not pinched.

   • Re-insert and tighten all six hex screws, referring to your organization method to ensure each screw goes back into its correct location.

   • Reattach your IGL or preferred HPA fitting to the external end of the macro line. You can now trim the macro line to your desired length, remembering to make another perfectly straight cut for the external connection.

Conclusion

By following this guide, you have successfully replaced the macro line in your Valken V12 engine, taking a significant step towards maximizing its service life and ensuring leak-free operation on the airsoft field. Proper maintenance is the key to getting the most out of your gear, especially for discontinued products.

We hope this technical guide from JVAN Airsoft has been helpful. Our goal is to support the airsoft community with expert knowledge and insights. If you found this article useful and are interested in more in-depth maintenance guides, technical breakdowns, and airsoft news, we encourage you to continue following JVAN Airsoft. Stay tuned for more content designed to help you master your equipment.
