AEG Cylinders: Ports, Volume and Fit

An AEG cylinder guides the piston and contains the air displaced during the compression stroke. Choosing one requires more than matching its outside appearance: the cylinder type, port position, effective piston stroke, barrel volume and sealing components work as a system.

What a cylinder port changes

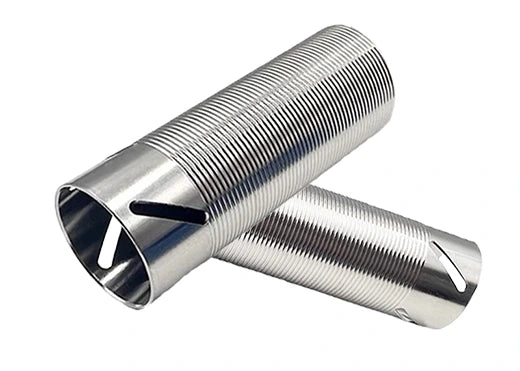

A port limits the portion of the cylinder used for compression. Its effect depends on where the piston head passes the port during the stroke. A full cylinder and a ported cylinder can therefore provide different effective air volumes even when their outside dimensions are similar.

Match the whole compression assembly

• Confirm gearbox format and physical cylinder dimensions.
• Inspect the inside surface for damage or contamination.
• Check the piston-head seal through its actual travel.
• Verify the cylinder head, nozzle, hop-up and barrel as an assembled path.
• Use the effective stroke and inner-barrel volume for volume calculations.

A standard gear ratio such as 18:1 or 13:1 does not by itself change cylinder volume. Stroke changes, including some short-stroke or DSG configurations, must be considered separately. There is no universal cylinder-to-barrel ratio that guarantees FPS, range or efficiency across every BB weight and build.

Use measurements and controlled testing before changing parts. Browse JVAN airsoft cylinders only after the required format and port arrangement are known.
