In airsoft AEG performance, pistons are critical yet overlooked components. At Jvan Airsoft, we analyze gearbox dynamics to maximize reliability. This guide dissects piston types, compatibility pitfalls, and upgrade strategies—based on real-world testing.

Why Pistons Fail & When to Upgrade

Stock pistons use plastic bodies with a single metal release tooth. They work reliably at ~0.8J but fail under higher stress:

Sheared pickup teeth cause gear spinouts mid-game.

Common triggers: Upgraded springs (>M110), 11.1V LiPo batteries, or high-speed builds.

Jvan Airsoft Rule: Proactively upgrade pistons when modifying power or rate of fire.

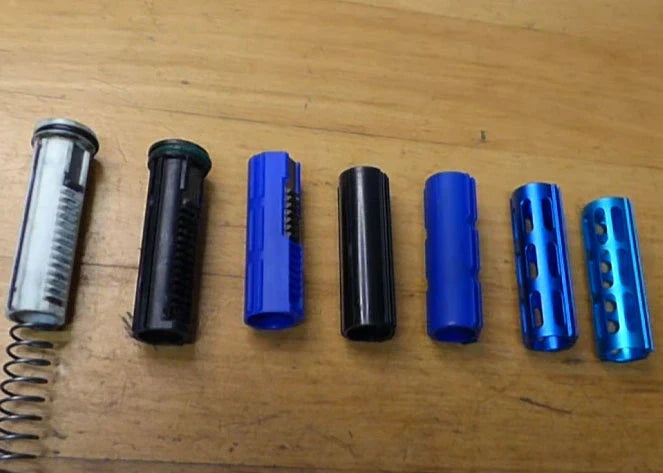

Piston Types:

1. Standard Plastic Pistons

• Build: Plastic body + 1 metal release tooth.
• Pros: Reliable in stock setups.
• Cons: Plastic pickup teeth snap under stress.JVAN Verdict: Replace immediately if upgrading.

2. Plastic Body + Full Metal Rack

• Build: Plastic body + full steel teeth.
• Pros: Durable for mid-power builds; lightweight; swiss-cheesing possible.
• Cons: Plastic body cracks under extreme force.
• JVAN Verdict: Solid mid-tier option.

3. All-Aluminum Pistons (Jvan Airsoft Recommended)

• Build: Full CNC aluminum.
• Pros: Unmatched strength (handles SP130+ springs/DSG builds).
• Cons: Heavier; requires compatibility checks.

Type A :

Holes at base.

Fits 90% of V2/V3 gearboxes. Our top choice.

Type B :

Solid base.

15-20% risk of binding in certain shells. Backup option.

4. Thin-Rail Aluminum Pistons

• Build: Aluminum with narrow rails.
• Use Case: Solves spur gear clearance in odd-geometried gearboxes (e.g., Sten).
• JVAN Verdict: Niche solution.

5. Hybrid Pistons (Avoid!)

• Build: Plastic body + metal head.
• Flaw: Still uses weak plastic teeth.
• JVAN Rating: ❌ Not recommended.

Jvan Airsoft's Compatibility Protocol

Never skip test-fitting aluminum pistons:

• Install piston without spring.
• Manually rotate sector gear through full cycle.

Check for:

• Grinding/binding on rails.
• Spur gear catching on tooth racks.
• Only proceed if movement is silky smooth.

The Jvan Airsoft Upgrade Philosophy

• Proactive > Reactive: Don't wait for piston failure—it ruins game days.
• Weight vs. Durability: Aluminum's added grams are negligible versus catastrophic failure.
• Precision Matters: A binding piston destroys gears/motors. Test-fit religiously.

“In high-stress builds, aluminum pistons aren't optional—they're insurance.”— Jvan Airsoft Tech Team
