AEG Gear Ratio Tuning Checklist
This checklist starts after you understand the basic meaning of AEG gear ratios. For the full explanation of 12:1, 13:1, 16:1, 18:1 and the JVAN 100:200 notation, read the main AEG gear ratio guide. Use this page to check whether the rest of the build supports the selected gear set.
Before assembly
- Confirm the gearbox platform and product application.
- Verify bushing or bearing size and axle support.
- Inspect the motor pinion, piston rack and tappet components.
- Check the spring, battery and electronic-control limits from their manufacturers.
During assembly

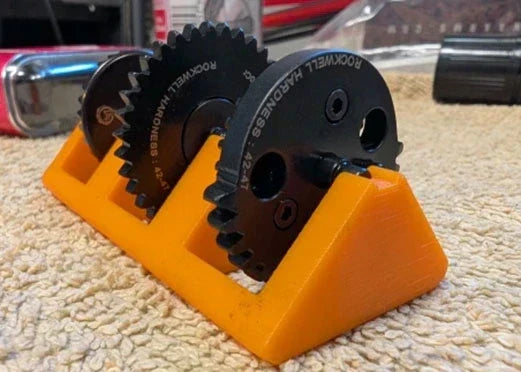

- Fit the bevel, spur and sector gears as a matched set.
- Shim with the shell closed and screws tightened.
- Set motor height from the pinion-to-bevel contact.
- Cycle the piston and tappet system manually before powered testing.
During testing
Use short tests and stop if the gearbox binds, engagement is uncertain or components heat abnormally. A lower written ratio does not by itself guarantee faster response, and a higher ratio does not by itself guarantee more torque. The motor, spring, battery, electronics, piston travel and assembly quality remain part of the result.
When the requirements are confirmed, browse JVAN gear sets.
