Helical Gears in Airsoft: Ultimate Guide by Jvan Airsoft

by JVAN PRECISION 24 Jul 2025
Helical Gears in Airsoft: Ultimate Guide by Jvan Airsoft

Unlocking Smooth Performance for High-Torque & Speed Builds

What Are Helical Gears?

Helical gears feature teeth cut at an angle (less than 90 dAegrees) to the gear axis. Unlike straight-cut gears, this design enables gradual tooth engagement, resulting in:

  • Up to 40% more surface contact between meshing gears
  • Significantly reuced noise and vibration
  • Smoother power transfer under load
  • Enhanced durability for high-stress setups

In airsoft, helical gears solve a critical pain point: balancing high-stress setups (e.g., DMRs) with silent operationa key focus for Jvan Airsoft technical builds.

Why Use Helical Gears in Airsoft?

Torque Applications (Primary Use Case)

  • Ideal for M150-M170 spring setups and DMR builds
  • Gear ratios optimized for torque multiplication:
  • 100:200 (24:1 ratio)

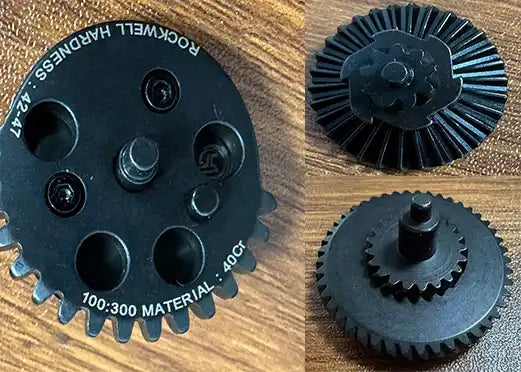

  • 100:300 (36:1 ratio)
  • Handles piston pre-engagement better than straight-cut gears

Critical Installation Differences: Helical vs. Straight-Cut Gears

Shimming: Precision Is Non-Negotiable

1.Contact Area Matters

  • Target 80-90% tooth engagement (visually verify through bushing holes)
  • <60% contact causes grinding, heat buildup, and failure

2.Side-to-Side Play Control

  • Helical gears generate axial thrust forces during operation
  • Allow <0.1mm lateral movement (tighter than straight-cut gears)
  • Loose shimming causes gear "walking" and premature wear

Final Validation:

  • Spin test (gears must rotate freely with grease)
  • Auditory check: Hissing = good; Grinding = critical failure
  • Current draw test (<25A on 30k motor)

Pro Tips from Jvan Airsoft

1.Greasing Protocol:

  • Use molybdenum disulfide grease on tooth flanks
  • Avoid lithium grease (attracts dirt)

2.Compatibility Notes:

  • No specialized pistons or pinions needed for
  • Works with standard V2/V3 gearboxes

3.Failure Prevention:

  • Over-shimming causes binding Measure gear stack height
  • Under-shimming strips teeth Verify 0.05mm gear-to-bushing clearance

Conclusion: When to Go Helical

Helical gears are viable for:

  • High-torque spring builds (>M150)
  • Stealth-focused replicas
  • High-speed setups (20-30 RPS with quality motors)
  • Avoid if using low-cost gear sets (poor angle consistency causes binding)
