As specialists at JVAN Airsoft, we break down air volume assemblies (AVA) – the core system dictating your AEG’s power consistency, range, and efficiency. Based on verifiable physics and real-world testing, this guide reveals how to match components for peak performance.

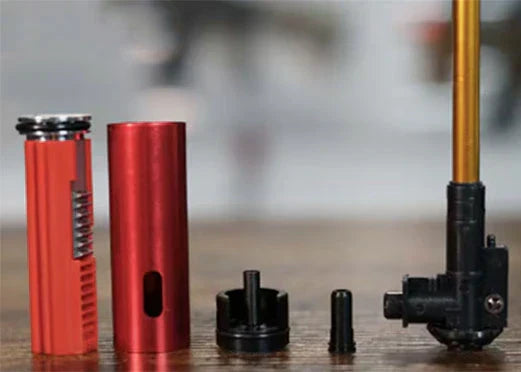

The 5 Critical AVA Components
1.Piston Head
- Controls air compression within the cylinder.
- O-ring quality determines seal integrity.
- Pro Tip: High-tension springs won’t fix poor compression; they accelerate wear.
2.Cylinder
- Volume must align with barrel length/BB weight.
- Standard 18:1 gears require ≈363mm barrels (6.05mm bore).
3.Cylinder Head
- Seals compressed air against the nozzle.
- Mismatched brands cause 100+ FPS drops (verified).
4.Nozzle
- Directs air into the hop-up chamber.
- Must form airtight seal with bucking.
5.Hop-Up Unit
- Final pressure regulator. R-hop patches fail if air volume is inadequate.
⚠️JVAN Airsoft Insight: Mixing brands risks tolerance gaps. For example, aftermarket hop-ups paired with stock nozzles often hemorrhage air.
Gear Ratios & Air Volume:
Your gear ratio dictates piston travel distance, altering effective cylinder volume:
| Gear Ratio | Piston Position | Best For | Barrel Limit |
|---|---|---|---|
| 18:1 | Full rear travel | Standard builds | ≤14.5" (368mm) |
| High-Speed | Mid-cylinder | CQB/RoF builds | ≤10" (254mm) |
| DSG | Front-loaded | Extreme RoF (>50 rps) | ≤8" (203mm) |
Consequences of Mismatching:
-
Barrel Too Long: Negative pressure forms, pulling BBs backward post-exit.
-
Barrel Too Short: Wasted air volume strains gears/motor.
-
Solution: Calculate volume using:
(Cylinder Volume) ÷ (Barrel Cross-Section) = Optimal Barrel Length
Upgrade Checklist by JVAN Airsoft Engineers
Follow these steps to avoid costly errors:
1.Prioritize Seal Over Brand
- Test compression by blocking nozzle and pushing piston. Resistance should hold ≥5 seconds.
2.Match Tolerances
- Use calipers to measure nozzle outer diameter and hop-up inner diameter. ≤0.05mm gap ideal.
3.Synch Gear Ratio & Barrel
- DSG builds need short barrels; DMRs require full-cylinder pistons.
4.Avoid Over-Voluming
- Excess air wastes energy and shreds pistons. Use ported cylinders for <300mm barrels.
5.Validate with Chrono
- 20 FPS variance between shots indicates air leaks.
Conclusion
Air volume optimization isn’t guesswork. It demands precision:
-
Never ignore gear ratio effects on air volume
-
Mixing brands risks catastrophic air loss
-
Barrel length must align with cylinder capacity
Need a guaranteed solution?
Explore JVAN Airsoft’s Pre-Matched AVA Systems – engineered for plug-and-play perfection.
